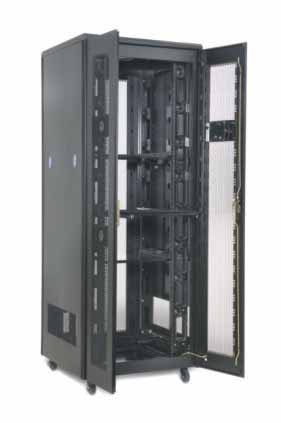

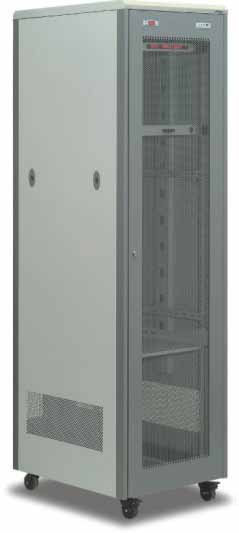

FLOOR STANDING CABINETS CYBERACK

APW Presidents CYBERack is high on fine styling and value-for-money features. It has been designed and engineered specifically for easy assembly and rapid equipment integration at site. Its innovative design is based on the use of aluminium profiles for the four vertical pillars, which are connected solidly to two welded steel end-frames. This results not only in low weight and an elegant appearance, but also permits quick assembly. Due to the rigidity provided by the steel end-frames, the CYBERack is able to handle equipment loads of upto 500 kgs. This makes it an ideal choice for mid-range use as a Server enclosure, or for network cabling purposes.

The facility to transport and stock in fully knocked-down ready-to-assemble kits make the CYBERack best suited for easy distribution and System Integration use.





Features
- Conforms to DIN 41494 - and current industry practices
- Load rating of 500 Kgs
- Fine styling, plus economy

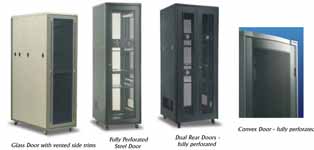

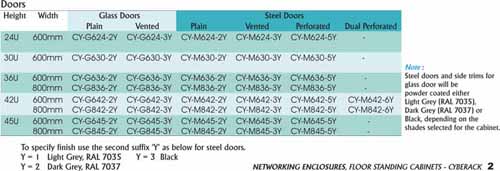

- Steel Doors - plain, vented at bottom, fully perforated and dual perforated
- Glass Doors - with optional vented side trims for front-to-back air flow
- Choice of powder coat shades

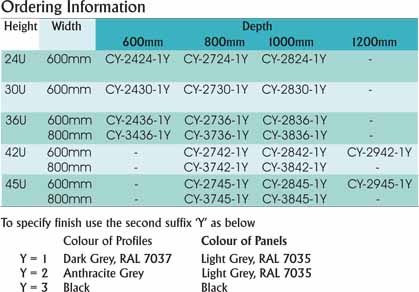

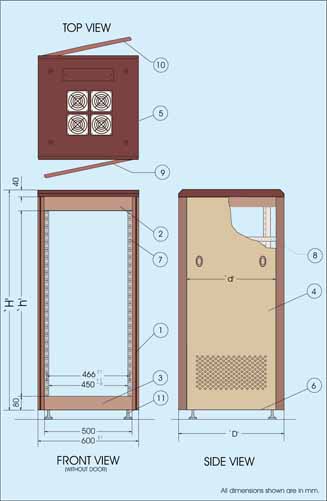

Sizes
Heights : 24U, 30U, 36U, 42U & 45U
Widths : 600mm & 800mm

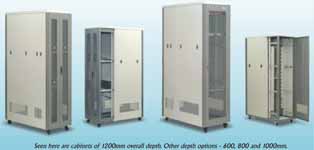

Depths : 600mm, 800mm, 1000mm &1200mm
Material and Finish


Vertical pillars of the frame are aluminium extrusions.
- All other parts are of formed sheet steel
- Three finishes are available - all Black, combination of Light Grey and Anthracite Grey, or Light Grey (RAL 7035) and Dark Grey (RAL 7037)

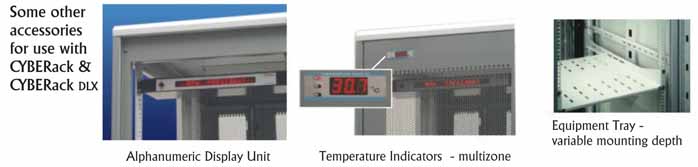

Optional Accessories

- Front doors of toughened tinted glass
- Rear steel doors - with venting options
- Stationary and sliding shelves
- Cantilever shelves
- Equipment support angles
- Cooling fans
- Cable management accessories

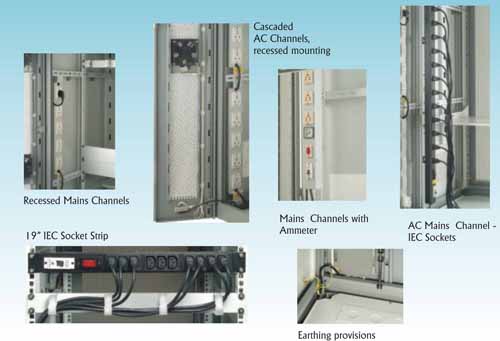

- AC Mains channel
  - Earth continuity kit
- Castors with foot-operated brakes
- Captive mounting hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller

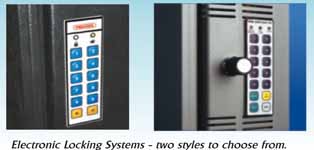

- Digital Locks
- Temperature Indicator

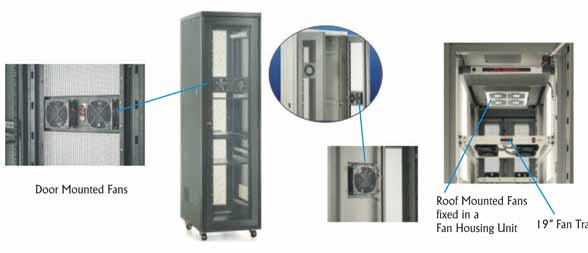

Airflow Options
